Bottom Navigation Bar

Key Widgets

• Scaffold

Note

Bottom Navigation Bar is a property of the Scaffold. There are three important properties items, currentIndex, and onTap. items setup the bottom buttons. currentIndex is the button index that was tapped. onTap is the listener for the button. The onTap should call the setState() function in order to update the screen and change the index.

Lecture Code

import 'package:flutter/material.dart';

void main() {
  runApp(const MaterialApp(home: MyApp()));
}

class MyApp extends StatefulWidget {
  const MyApp({Key? key}) : super(key: key);

  @override
  _MyAppState createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {

  int selectedIndex = 0;

  static const TextStyle myStyle =
      TextStyle(fontSize: 36, fontWeight: FontWeight.bold);

  // Note that we are creating the custom widget "myWidget"
  static List<Widget> _widgetOptions = [
    Text('Index 0: People', style: myStyle),
    Text('Index 1: Weekend', style: myStyle),
    Text('Index 2: Message', style: myStyle),
    myWidget
  ];

  // 50 cities
  static List cities = [
    "New York","Los Angeles","Chicago","Miami","Dallas","Houston",
    "Philadelphia","Atlanta","Washington","Boston","Phoenix","Detroit",
    "San Francisco","Seattle","San Diego","Minneapolis","Tampa",
    "Brooklyn","Denver","Queens","Baltimore","Las Vegas","St. Louis",
    "Riverside","Portland","San Antonio","Sacramento","San Juan",
    "San Jose","Orlando","Cleveland","Pittsburgh","Manhattan","Austin",
    "Cincinnati","Indianapolis","Kansas City","Columbus","Charlotte",
    "Virginia Beach","Bronx","Milwaukee","Providence","Jacksonville",
    "Salt Lake City","Nashville","Raleigh","Memphis","Richmond","Louisville"
  ];

  // This is a custom widget to show that any widget can be placed
  // in the body - via a list.
  // NOTE: This is Widget is defined as a variable.
  static Widget myWidget = Scrollbar(
      thickness: 10.0,
      // thumbVisibilty set to true will always
      // show the scroll bar
      thumbVisibility: true,
      radius: Radius.circular(10),
      child: ListView.builder(
          primary: true,
          itemCount: 50,
          itemBuilder: (BuildContext context, int index) {
            return Container(
                height: 50,
                color: index.isEven ? Colors.black26 : Colors.grey[200],
                child: Padding(
                    padding: const EdgeInsets.all(10),
                    child: Text('City: ' + cities[index],
                        style: TextStyle(color: Colors.indigo[800]))));
          }));

  void onItemTapped(int index) {
    setState(() {
      selectedIndex = index;
    });
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: const Text("Bottom Nav")),
        body: Center(child: _widgetOptions.elementAt(selectedIndex)),
        bottomNavigationBar: BottomNavigationBar(
          items: const [
            BottomNavigationBarItem(
                icon: Icon(Icons.people),
                label: 'People',
                backgroundColor: Colors.red),
            BottomNavigationBarItem(
                icon: Icon(Icons.weekend),
                label: 'Weekend',
                backgroundColor: Colors.green),
            BottomNavigationBarItem(
                icon: Icon(Icons.message),
                label: 'Message',
                backgroundColor: Colors.indigo),
            BottomNavigationBarItem(
                icon: Icon(Icons.location_city),
                label: 'Cities',
                backgroundColor: Colors.teal),
          ],
          currentIndex: selectedIndex,
          selectedItemColor: Colors.amber[800],
          onTap: onItemTapped,
        ) //End Of Bottom Navigation
        );
  }
}

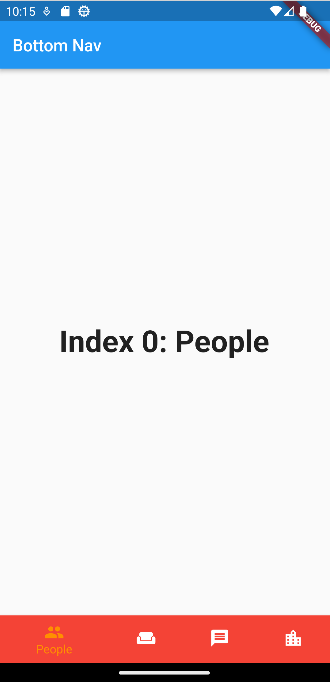

Example of Buttons 1 through 3

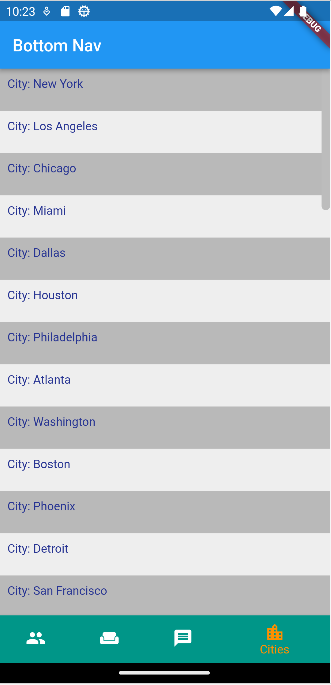

Example of the List Builder for Button 4
